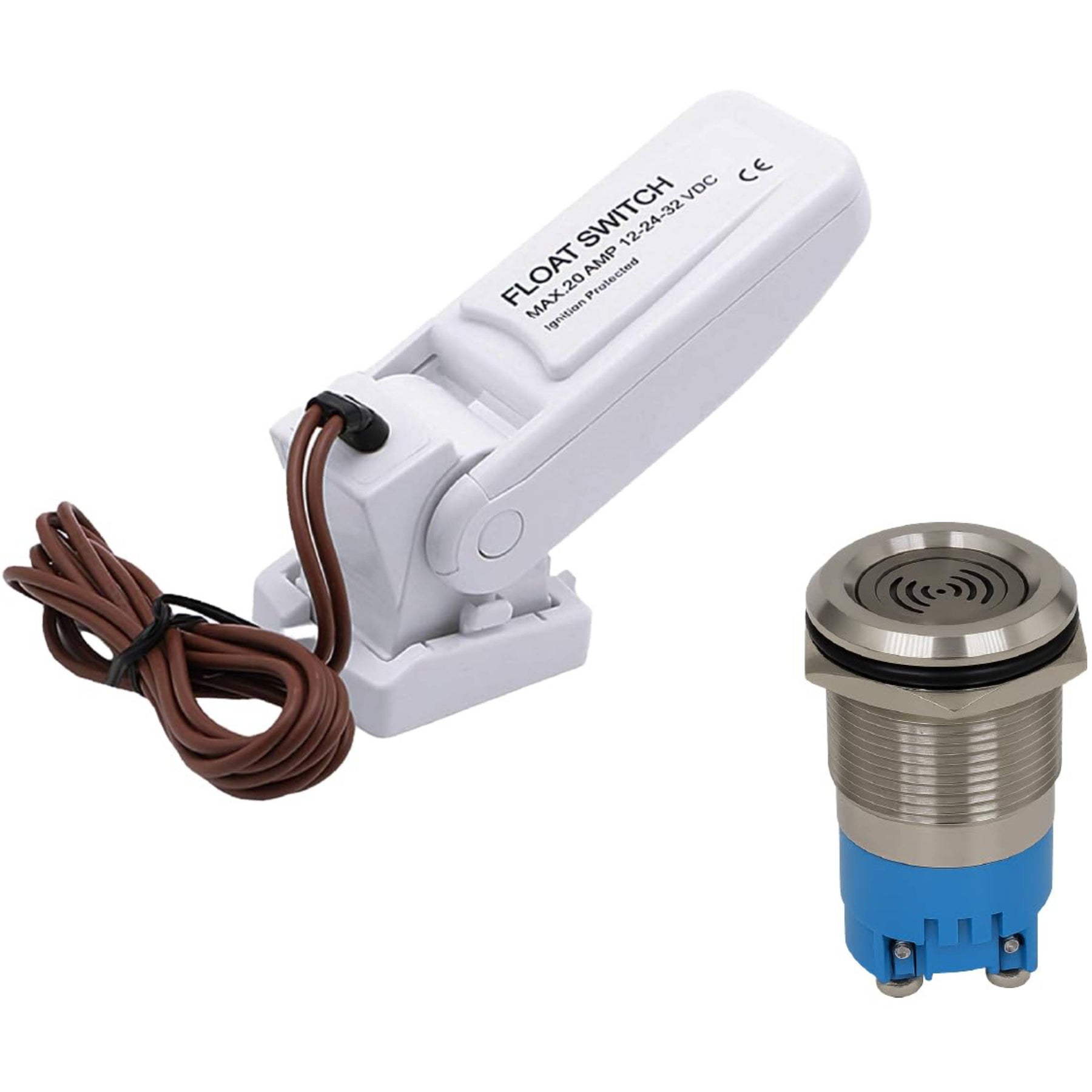

Automatic Float Switch with Buzzer Alarm for Bilge Pump

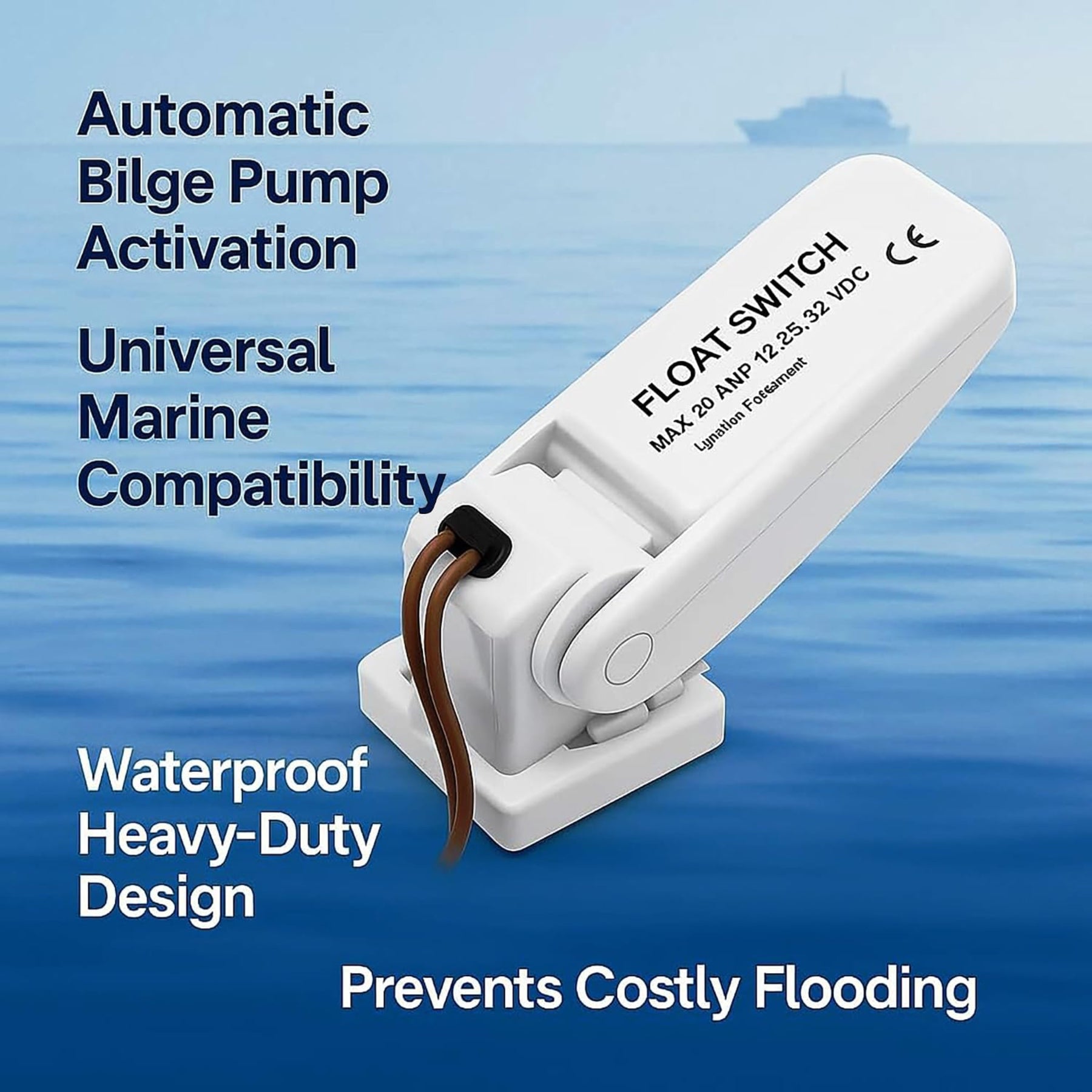

• AUTOMATIC WATER LEVEL CONTROL: Automatically activates or deactivates pumps based on fluid level. Ideal for sump, tank, and bilge systems that require reliable hands-free operation.
• UNIVERSAL INDUSTRIAL COMPATIBILITY: Works with most 12V, 24V, or 110V pump systems. Designed for use in industrial, marine, and residential water management setups.

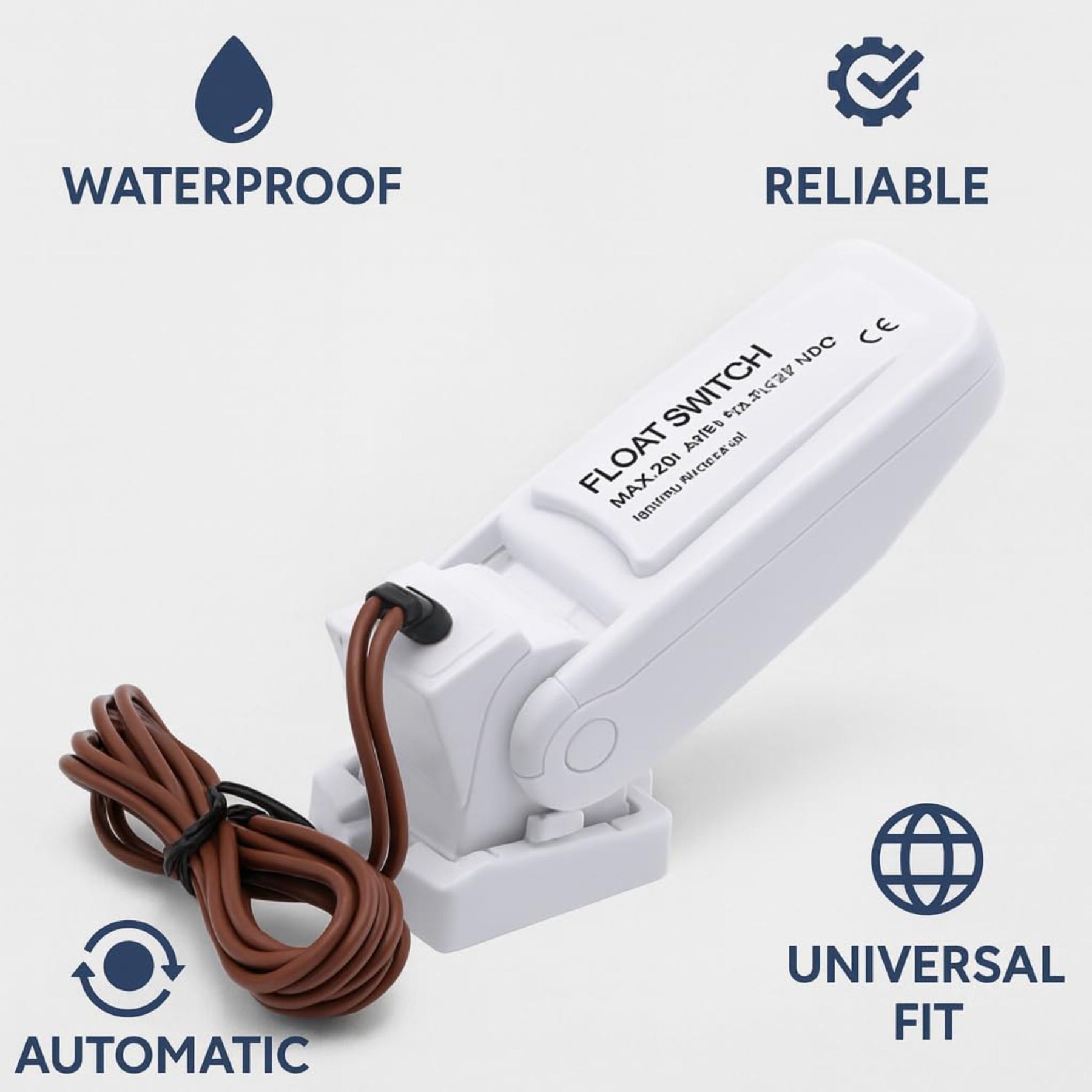

• WATERPROOF & DURABLE DESIGN: Sealed housing prevents corrosion and water intrusion. Built to withstand demanding environments including marine and utility applications.
• COMPACT WITH FLEXIBLE INSTALLATION: Measures 4" H × 6" L × 2" W with a 39-inch cable for easy placement and mounting in tight spaces.
• RELIABLE PERFORMANCE, NO MANUAL MONITORING: Automatic float action provides consistent operation and peace of mind by eliminating the need for manual switching.

Maintain reliable water level control with this Automatic Float Switch with Built-In Buzzer Alarm, designed for bilge pumps, sump systems, and water tanks across marine, RV, and residential environments.

This float switch automatically activates and deactivates connected pumps based on fluid levels, helping manage water efficiently while reducing the need for manual monitoring. The integrated buzzer alarm delivers a clear audible signal when water levels change, making it easier to respond quickly in critical situations.

Built with a sealed, waterproof housing, the unit is designed to resist corrosion and perform in both freshwater and saltwater environments. Its compact size and 39-inch cable allow flexible installation in tight or confined spaces such as bilge compartments, utility rooms, and tank systems.

Compatible with most 12V, 24V, and 110V pump systems, this float switch supports a wide range of applications including boats, RVs, and home water management setups. The automatic float mechanism requires no calibration, offering simple operation for both professionals and DIY users.

A practical solution for maintaining proper water levels, this float switch combines automation, alert functionality, and durable construction for dependable everyday use.

Q&A

• Q: Is this compatible with all pumps?
  A: Works with most 12V/24V/110V systems
• Q: Can it be used in saltwater?
  A: Yes, corrosion-resistant waterproof design
• Q: Does it require calibration?
  A: No, automatic float operation
• Q: Is it DIY-friendly?
  A: Yes, simple installation with included cable
• Q: Does it prevent dry running?
  A: Helps shut off pump at low water levels
• Q: Can the buzzer be turned off?
  A: Integrated automatic alert system

Physical & Material Specifications

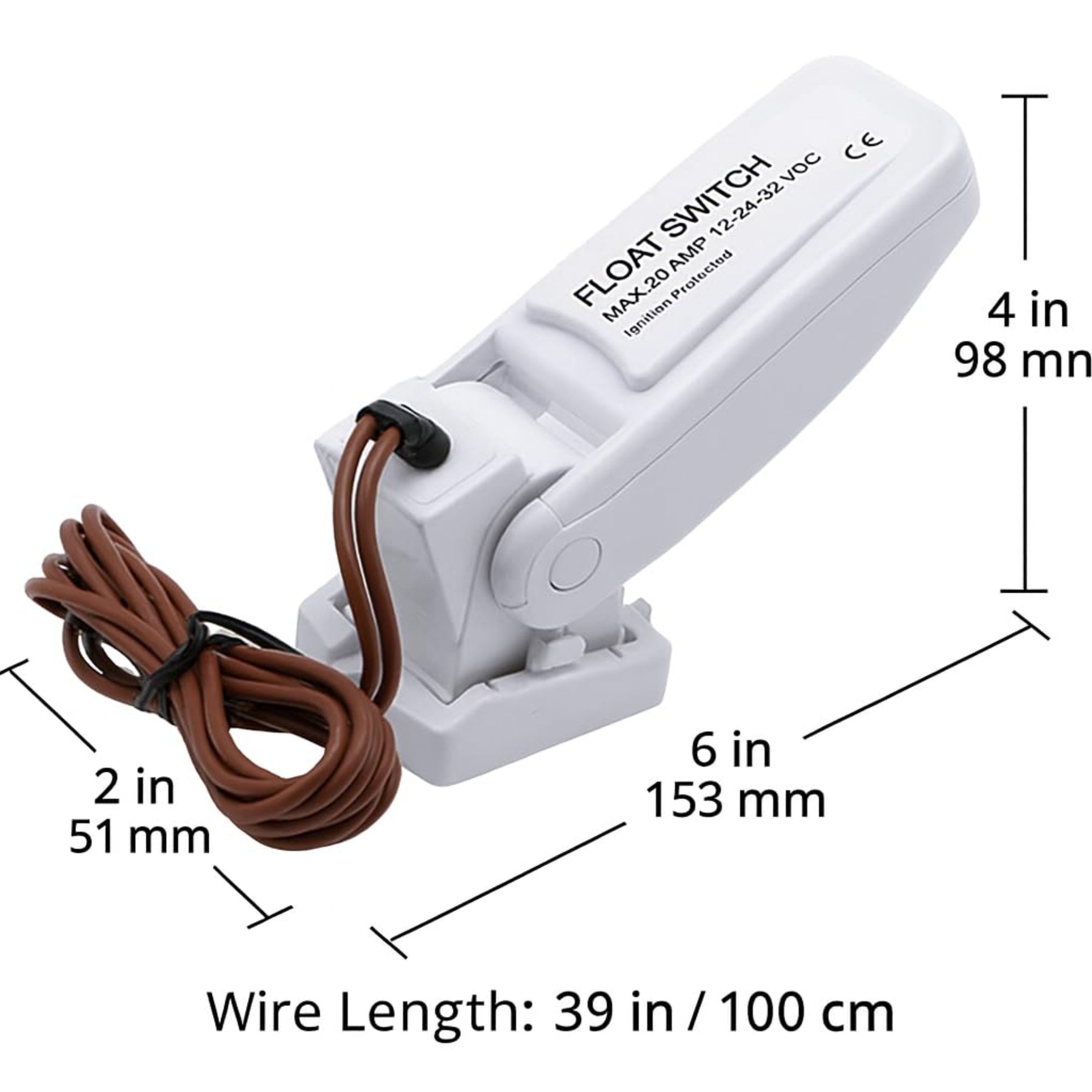

• Dimensions: 4" H × 6" L × 2" W
• Housing Material: Heavy-duty, waterproof ABS plastic
• Wire Length: 39 inches (1 meter)
• Wire Gauge: 18 AWG marine-grade lead wire

Electrical Specifications

• Voltage Compatibility: Multi-voltage support across 12V DC, 24V DC, and 110V systems
• Maximum Current Rating: 20 A @ 12 V DC10 A @ 24 V DC8 A @ 32 V DC

Operational Specifications

• Operation Type: Automatic, float-activated mechanical circuit trigger
• Calibration: Fully automatic operation requiring no user calibration
• Alarm System: Integrated, automatic high-water audible alert (cannot be manually toggled off)
• Mounting Options: Inline or bracket compatible design
• Environment Suitability: Sealed housing resists corrosion in both fresh and saltwater environments
• Primary Applications: Marine bilge pumps, RV holding tanks, off-grid water tanks, and residential sump systems

Overview

This heavy-duty, waterproof float switch automatically controls your bilge pump or water management system based on fluid levels, while the integrated buzzer provides an immediate audible warning before overflow occurs. It is compatible with 12V DC, 24V DC, and 110V AC electrical setups.

Pre-Installation Notes

• Disconnect Power: Always turn off the main power supply or disconnect the battery before handling any electrical wiring to prevent short circuits.
• Fuse Protection: We recommend using an inline fuse (sized according to your bilge pump's requirements) on the positive (+) power line to protect the circuit.
• Wire Extensions: If you need to extend the pre-attached 39-inch marine-grade lead wires, ensure you use equivalent 18 AWG marine-grade wire and waterproof heat-shrink connectors to maintain a sealed system.

Step-by-Step Installation

1. Mounting the Float Switch

• Position the float switch horizontally in the lowest part of your bilge compartment, sump, or water tank.
• Mount the unit securely using the integrated bracket or mount it inline with your existing pump layout. Ensure there are no loose wires or debris that could physically obstruct the movement of the mechanical float arm.

2. Wiring the Circuit (Standard 12V / 24V DC Setup)

The float switch acts as an inline mechanical switch that breaks or completes the positive power loop. Follow these wiring paths:

• Positive Power Connection: Run a wire from the positive (+) terminal of your battery or switch panel through an inline fuse, and connect it to one of the 18 AWG lead wires on the float switch.
• Switch to Pump Link: Connect the second lead wire of the float switch directly to the positive (+) power wire of your bilge pump.

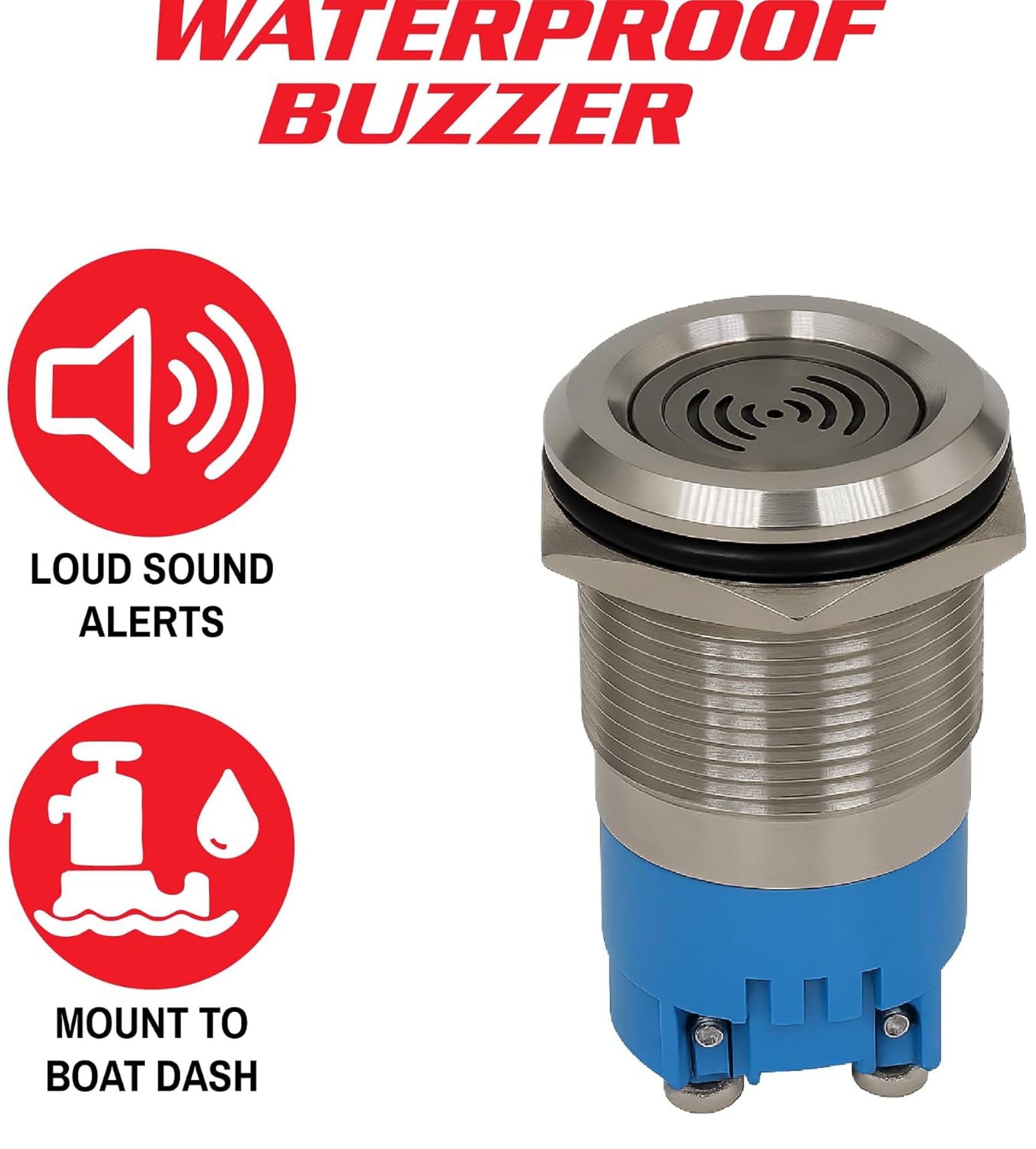

• Buzzer Integration: Wire the integrated audible buzzer inline between the float switch trigger line and the pump's positive feed. This ensures that when the water lifts the float and completes the circuit, the buzzer sounds at the exact same moment power is delivered to activate the pump.
• Ground Connection: Connect the negative (-) ground wire of your bilge pump directly back to the negative terminal of the battery or your system's common ground block.

3. Testing the System

• Double-check that all connections are secure and properly sealed with waterproof electrical tape or heat-shrink tubing to prevent corrosion.
• Reconnect the main power supply.
• Manual Test: Gently lift the mechanical float arm up by hand. The bilge pump should immediately turn on, and the integrated buzzer should emit a loud, clear alert tone. Lower the float arm back down; the pump should shut off, and the alarm should stop instantly.

Troubleshooting & Maintenance

• Pump will not turn off: Check the float switch area to ensure debris or sludge is not physically jamming the mechanical float arm in the raised position.
• Buzzer sounds but pump doesn't run: Verify that the wiring connection between the float switch output and the pump's positive terminal is solid, and check if your pump's individual fuse has blown.
