Hard Wire Car Kit USB-C for Micro GPS Tracker GL320MG

• CONTINUOUS POWER FOR GPS TRACKING: Keep your compatible SpySpot Micro GPS tracker powered at all times without removing it to recharge. Ideal for long-term vehicle monitoring and reliable tracking performance.
• SIMPLE 2-WIRE INSTALLATION: Connect directly to your vehicle's electrical system using a straightforward red and black wire setup. Can be wired to ignition power or constant power depending on your installation preference.
• COMPATIBLE WITH MULTIPLE GPS TRACKERS: Designed to work with SpySpot GL320MG, GL300, and GL200 Micro GPS trackers. Also suitable for other compatible 12V devices such as dash cameras.
• DESIGNED FOR STANDARD 12V VEHICLES: Works with most cars, trucks, and SUVs using a 12V electrical system. Not compatible with 24V vehicle systems.
• RELIABLE LONG-TERM OPERATION: Provides consistent power for continuous vehicle tracking with minimal maintenance once installed. Professional installation recommended for users unfamiliar with vehicle wiring.

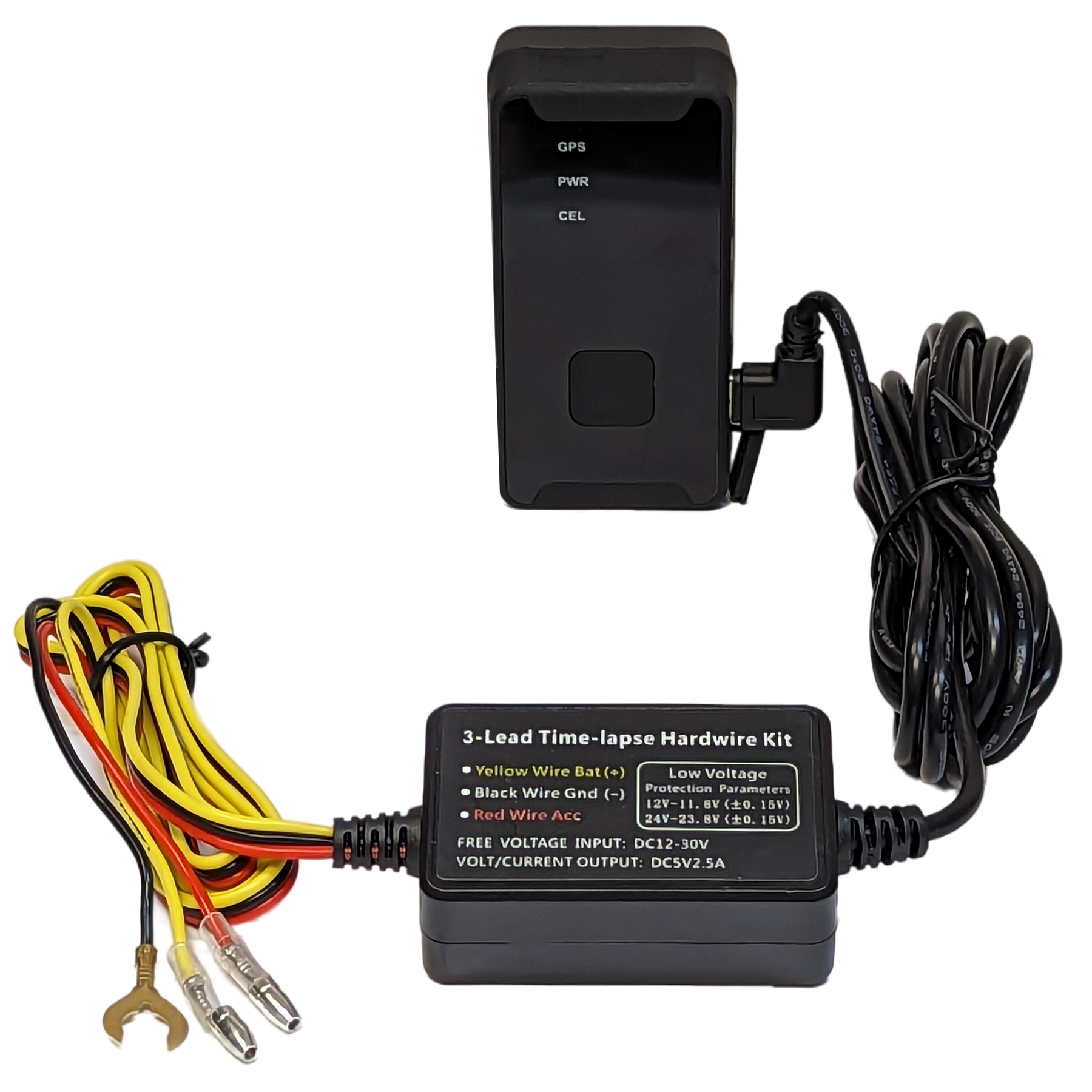

The SpySpot Hardwire Car Kit Power Supply provides a dependable power connection for compatible Micro GPS trackers installed in your vehicle. By connecting directly to your vehicle's 12-volt electrical system, this kit keeps your tracker powered continuously without the need to remove or recharge the device.

This hardwire power kit is designed for vehicle owners who want reliable, long-term tracking performance. It can be connected to ignition power so the tracker operates only when the vehicle is running, or to a constant power source for continuous monitoring even when the vehicle is turned off.

Compatible with SpySpot GL320MG, GL300, and GL200 Micro GPS trackers, the kit supports flexible installation across a wide range of vehicles including cars, trucks, and SUVs that use standard 12-volt electrical systems.

The included cable length provides sufficient reach for discreet installation inside the vehicle, helping keep your tracking setup secure and hidden from view. Once properly installed, the system operates with minimal maintenance and supports dependable vehicle monitoring over extended periods.

For users unfamiliar with vehicle electrical wiring, professional installation is recommended.

Power & Electrical Specifications

• Input Voltage: DC 10V – 36V
• Output Voltage: 5V DC (regulated via integrated step-down transformer module)
• Input Current: 1 Amp
• Output Amperage: 2.5 Amps
• Electrical System Compatibility: Designed exclusively for standard 12V automotive systems (cars, trucks, SUVs); not natively compatible with heavy-duty 24V commercial vehicle systems.

Physical & Hardware Design

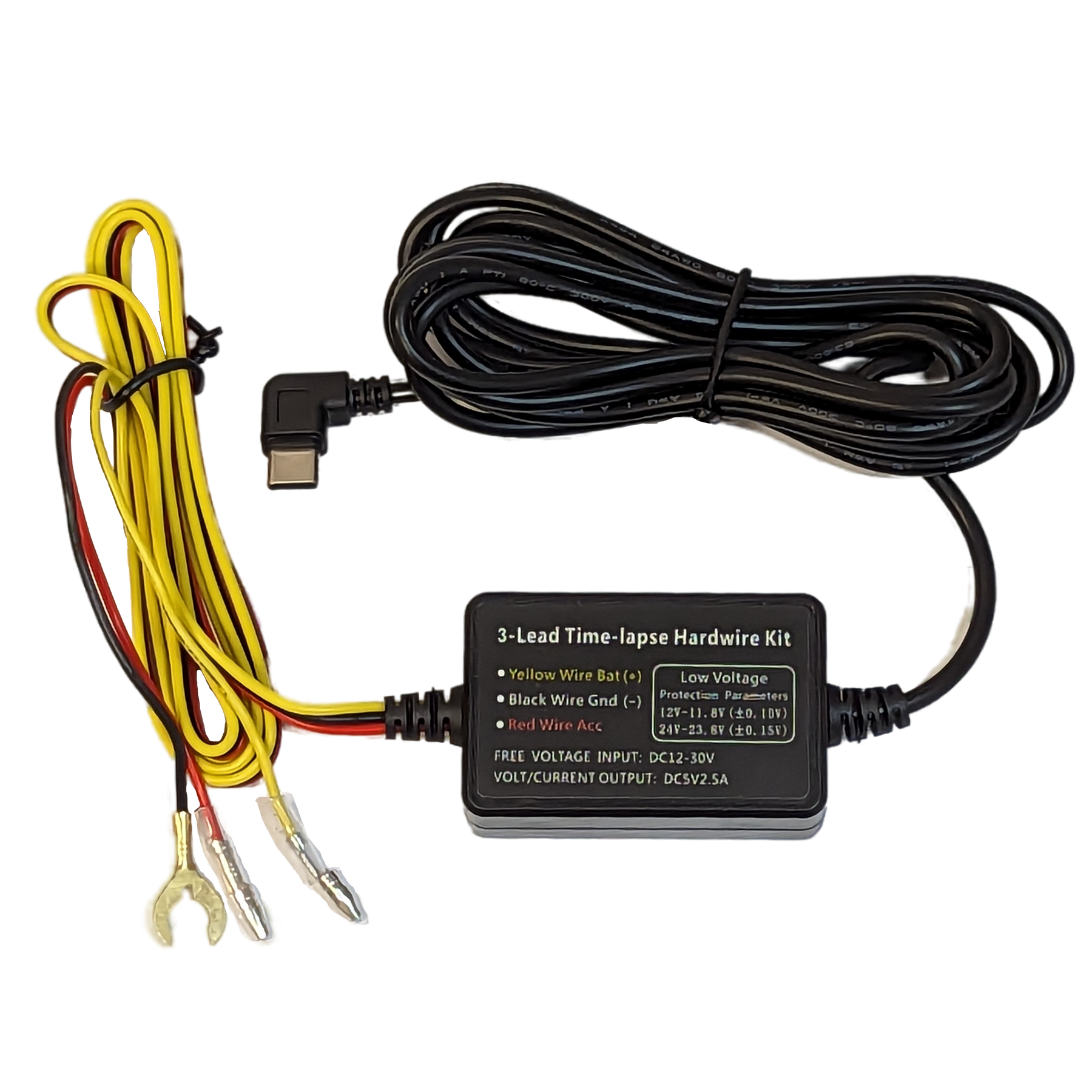

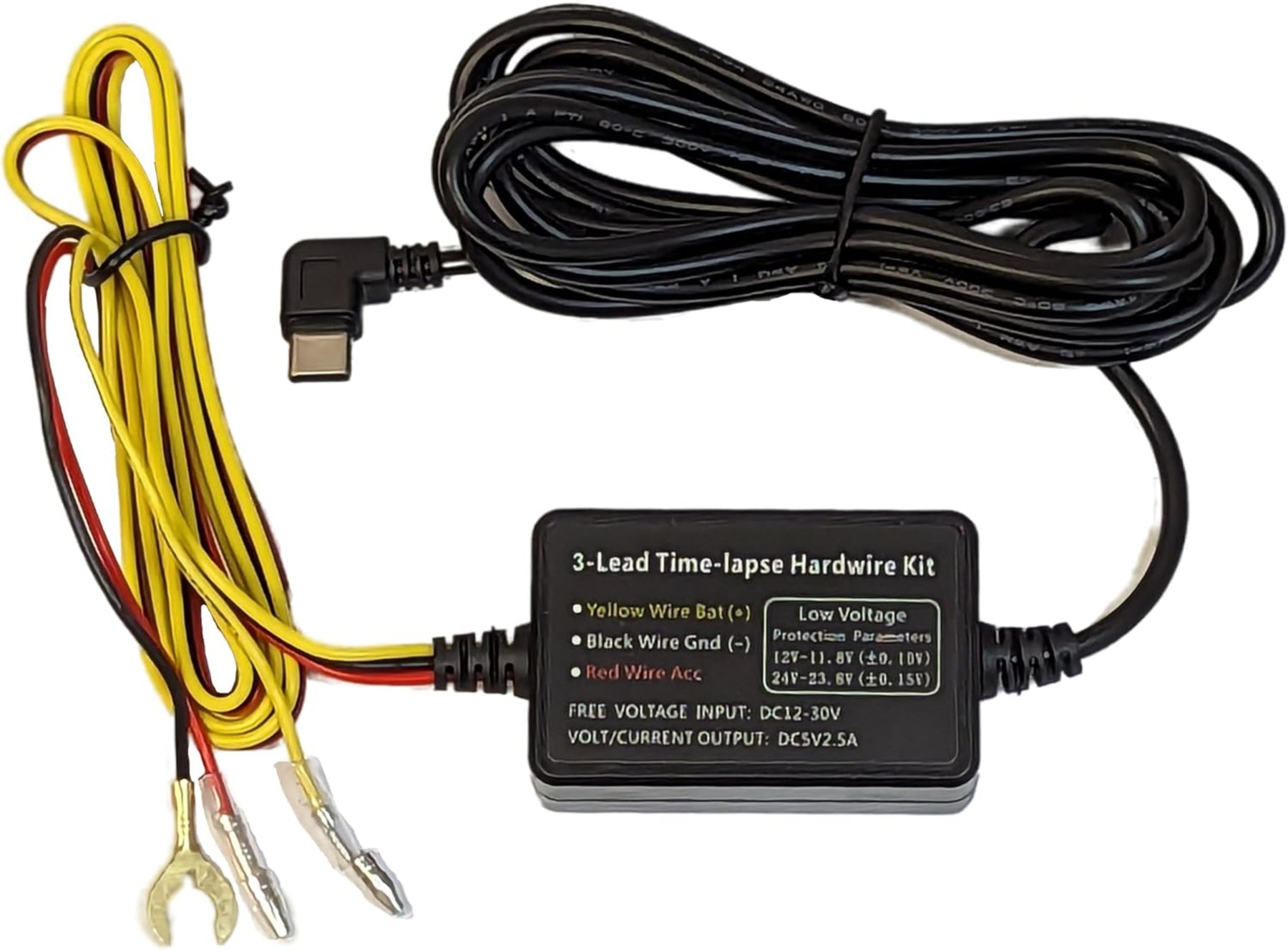

• Output Interface Connector: USB Type-C (Male)

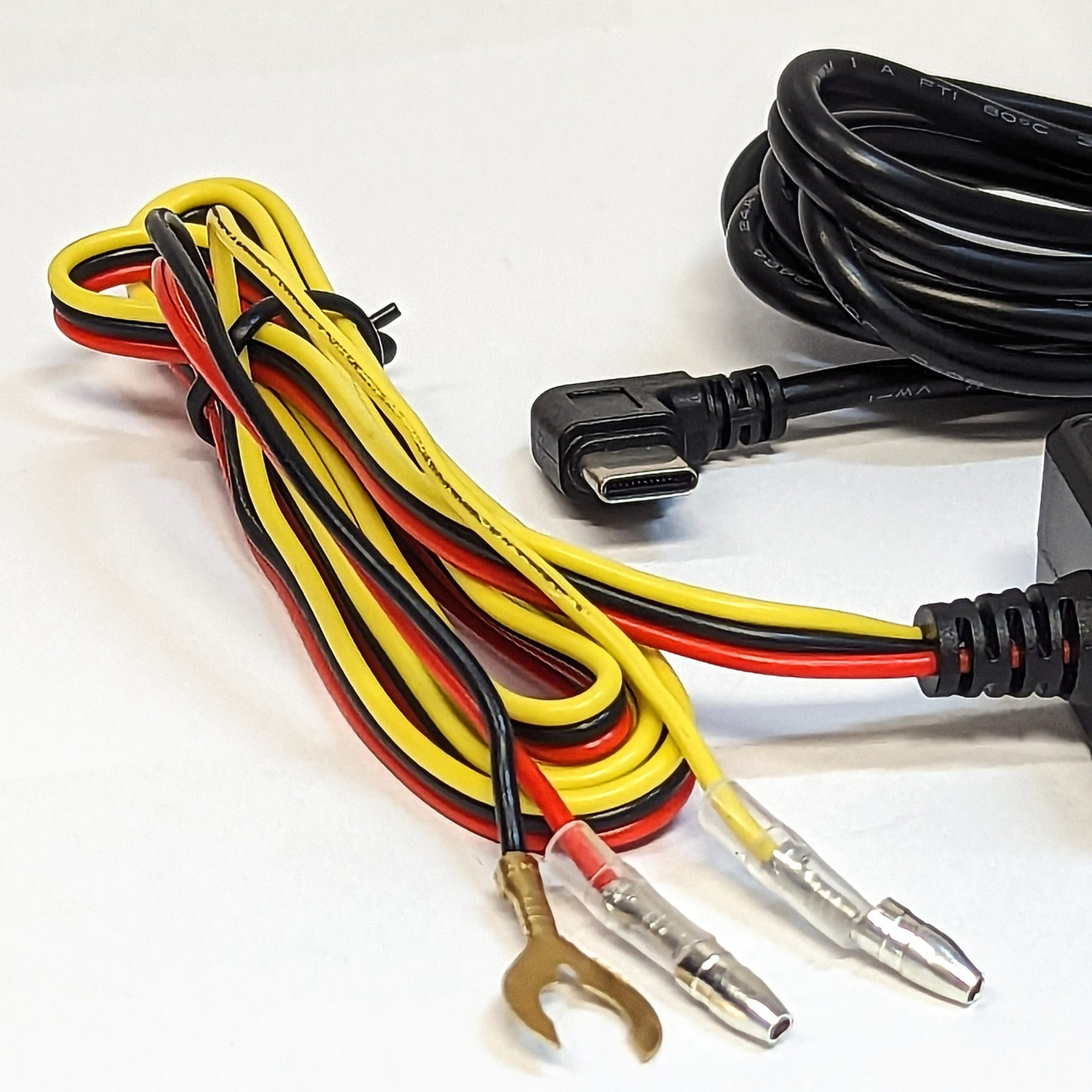

• Input Interface Wiring: 2-wire bare lead system (Red = Positive, Black = Ground/Negative)
• Total Cable Length: 78 inches (approximately 6.5 feet / 198.1 cm)
• Number of Conductors: 2
• Number of Outlets: 1
• Color: Black and Yellow wiring details
• Water Resistance: Not Water Resistant (requires interior or weatherproofed compartment routing).

Compatibility Matrix

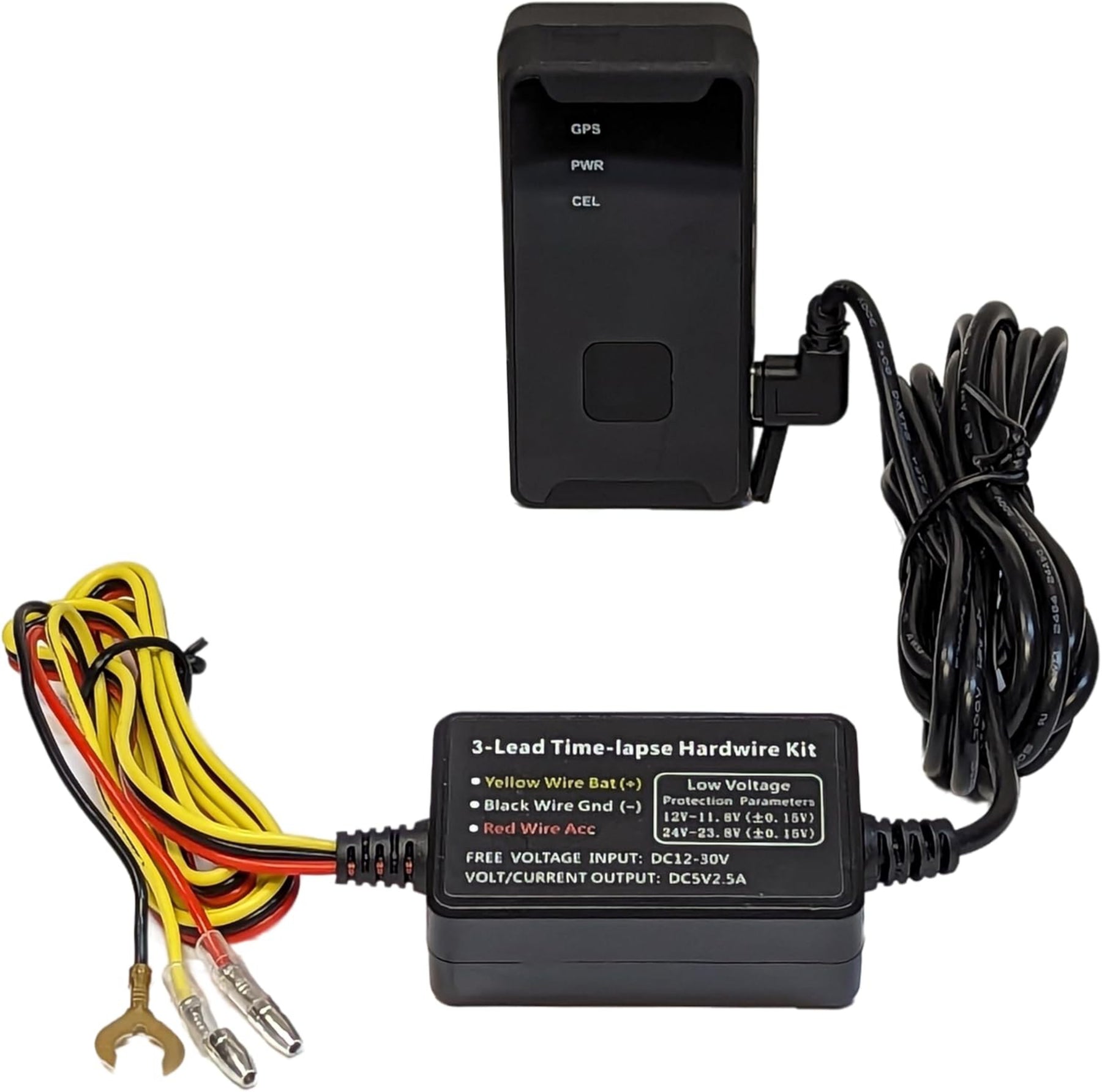

• Primary Device Support: Engineered explicitly for the SPY SPOT GL320MG 4G LTE Micro GPS Tracker.
• Legacy Device Support: Backward compatible with older mini-portable models utilizing USB-C configurations, including the GL200, GL300, and GL310MG variants.

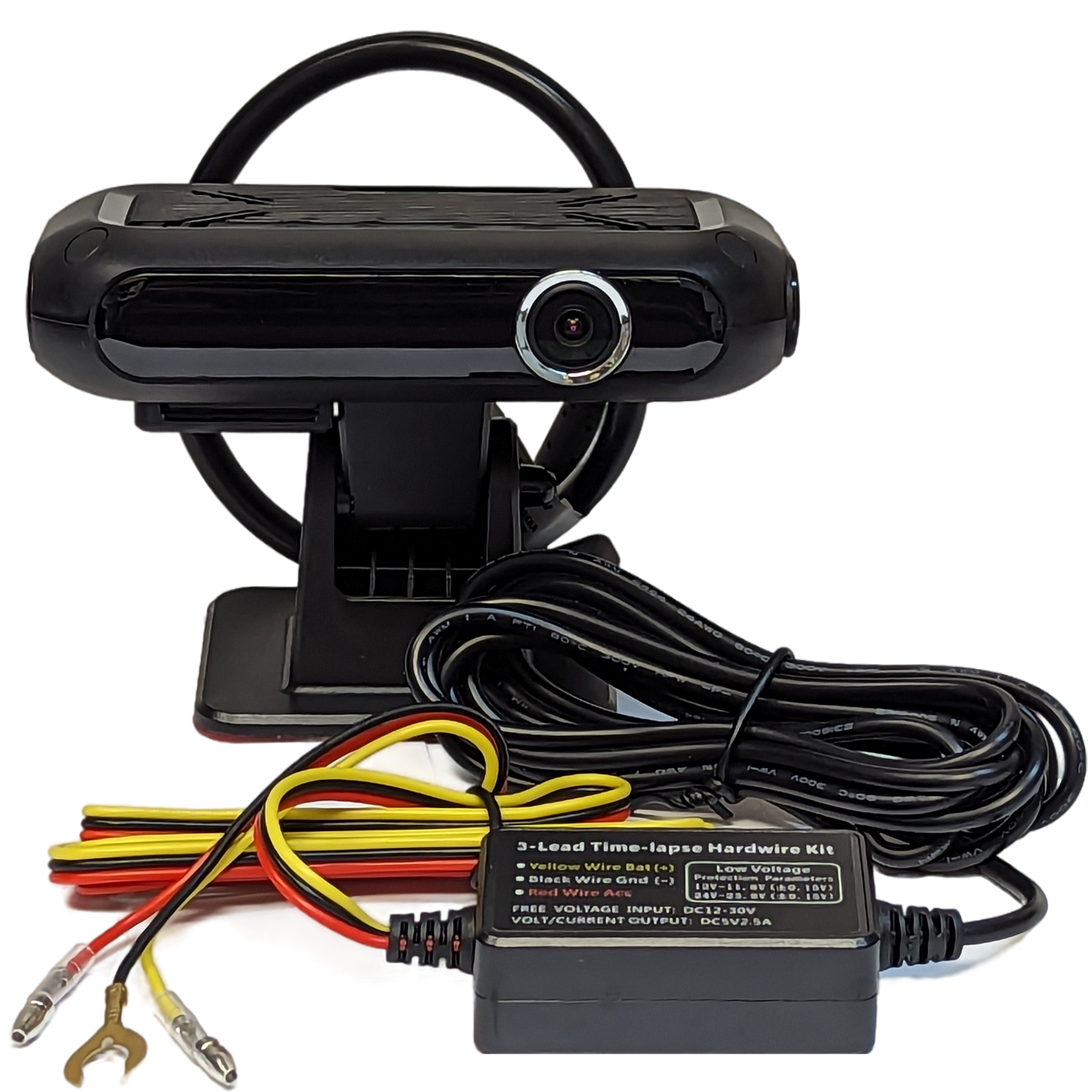

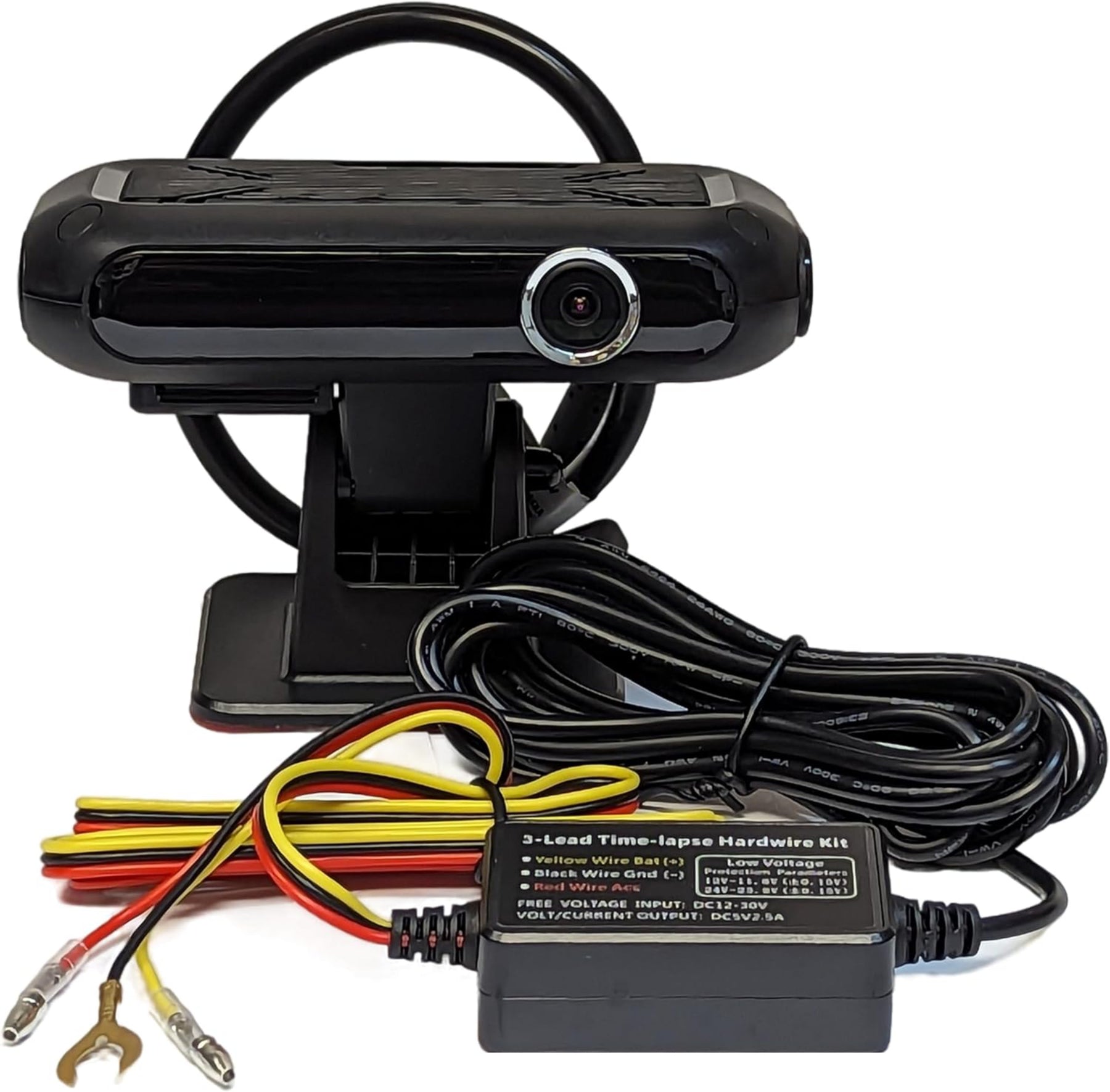

• Universal Usage: Suitable for powering non-GPS 12V hardware like dash cameras that match the same operating voltage and USB-C layout.

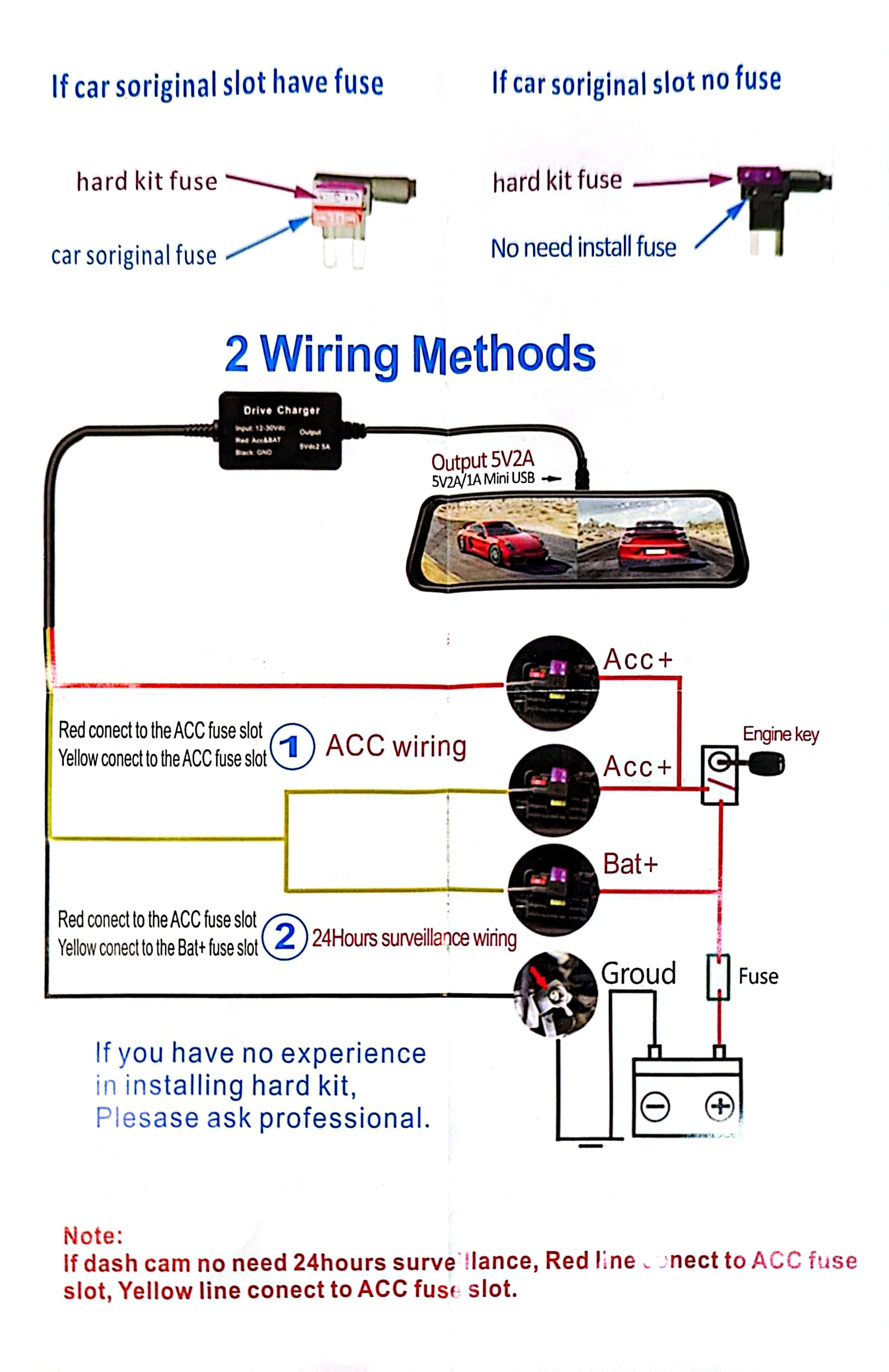

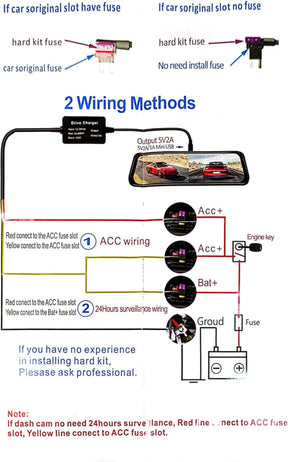

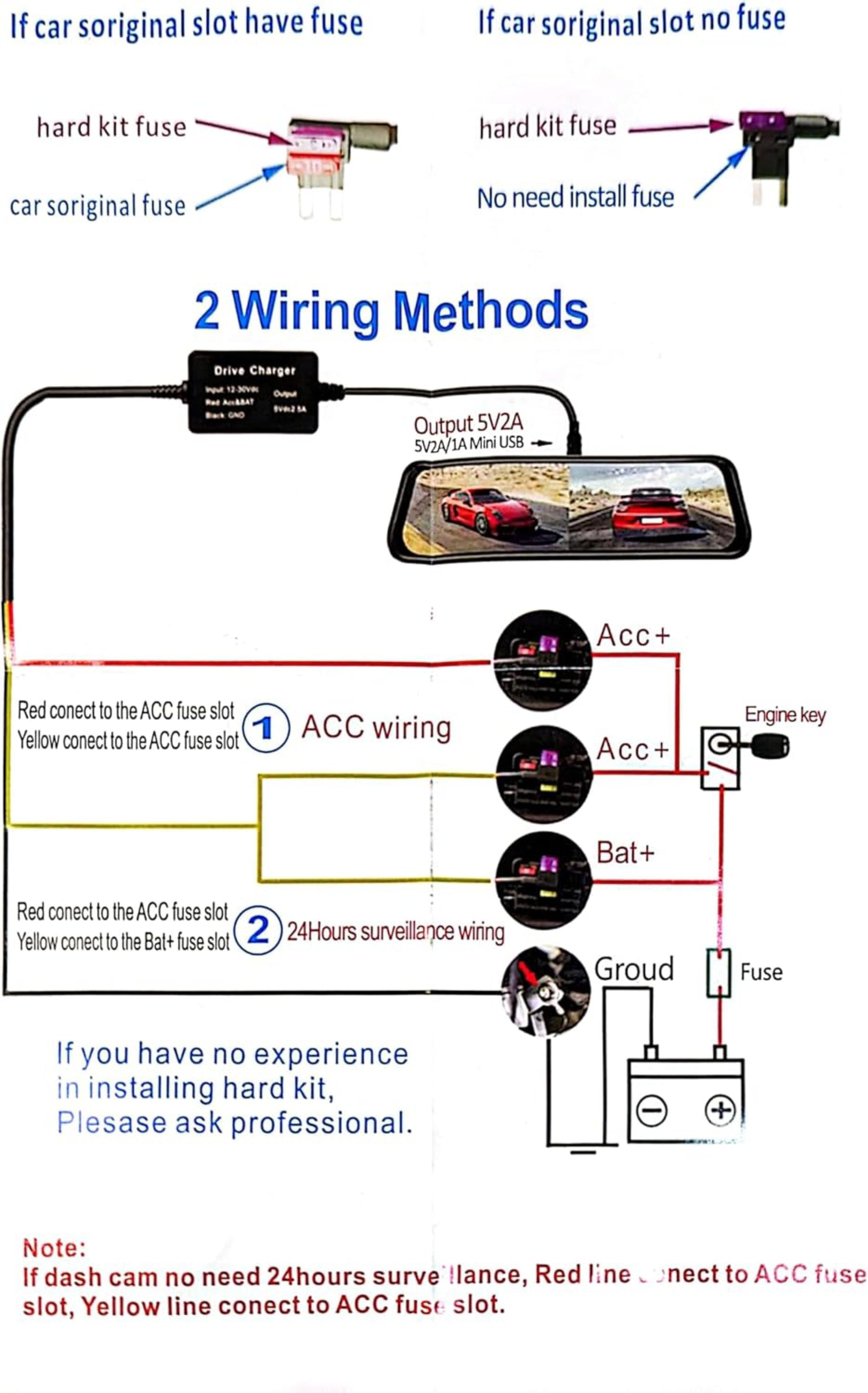

Installation & Wiring Configurations

• Constant Power Configuration: Wiring directly to a permanent, un-switched 12V circuit (e.g., directly to the vehicle battery) provides 24/7 continuous tracker operation without draining the device's internal battery.
• Ignition-Switched Configuration: Wiring to an ignition-dependent fuse or circuit (e.g., accessory lines, tail lights) charges the internal battery only while the engine is running.

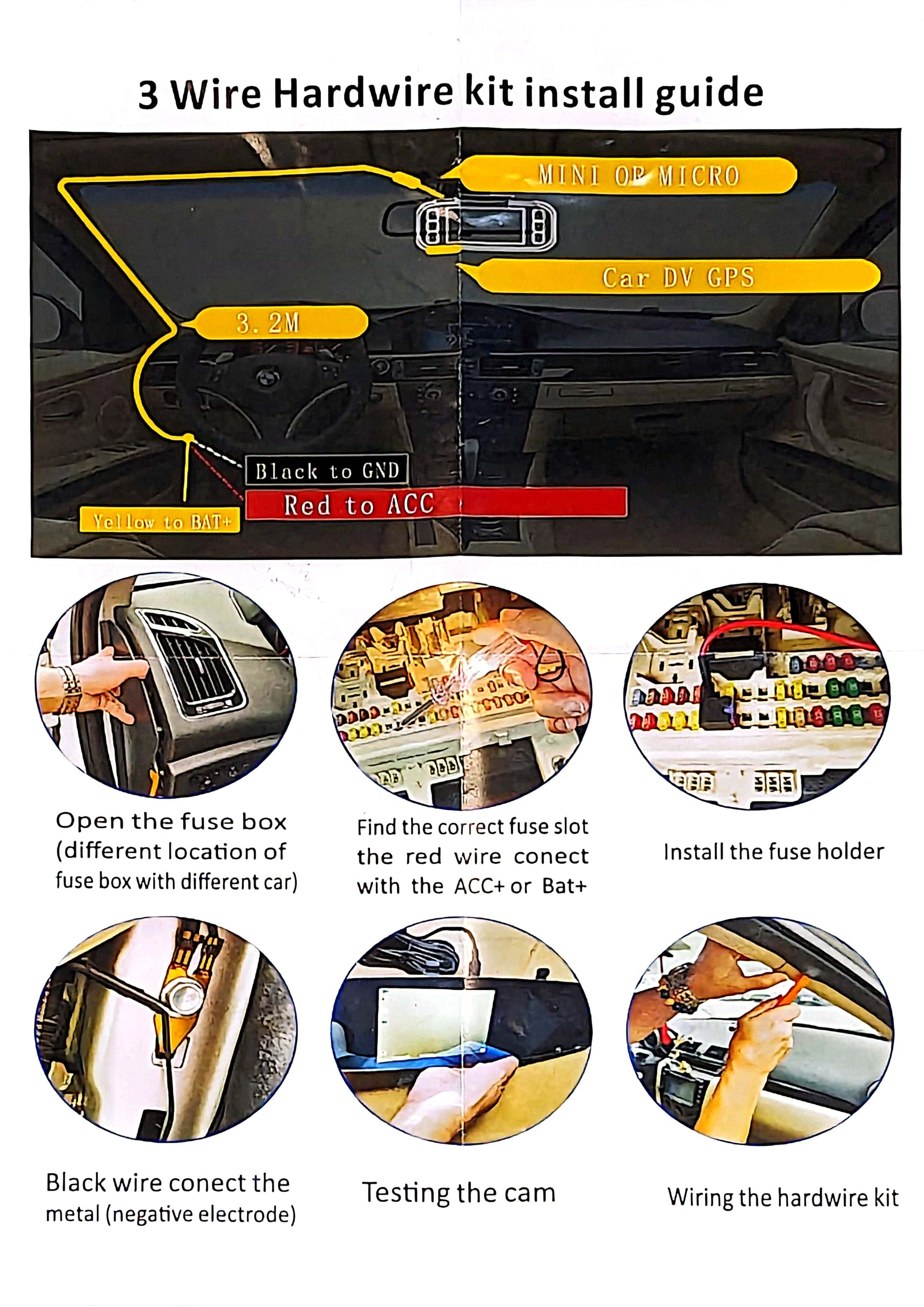

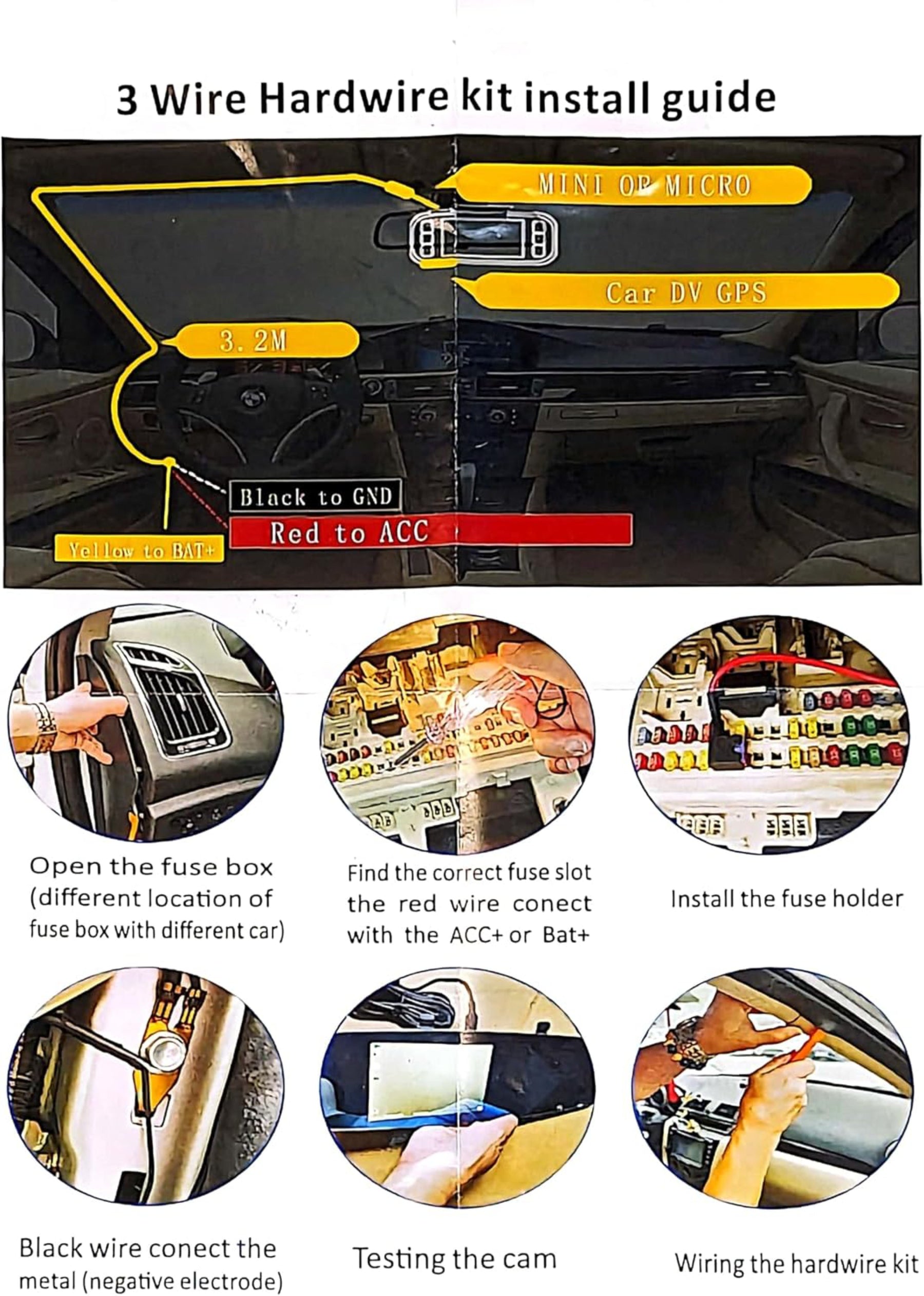

Installation & Setup Guide

Keep your GPS tracker powered 24/7 without ever removing it to recharge. This basic guide will help you safely install your SPY SPOT Hard Wire Car Kit USB-C into your vehicle's electrical system.

Before You Begin

• Estimated Time: 20-30 minutes
• Difficulty: Easy to Moderate (Basic understanding of vehicle fuse boxes required)
• Tools Needed:
  - Fuse puller (usually located inside your car's fuse box cover)
  - Automotive circuit tester or multimeter (optional, but recommended)

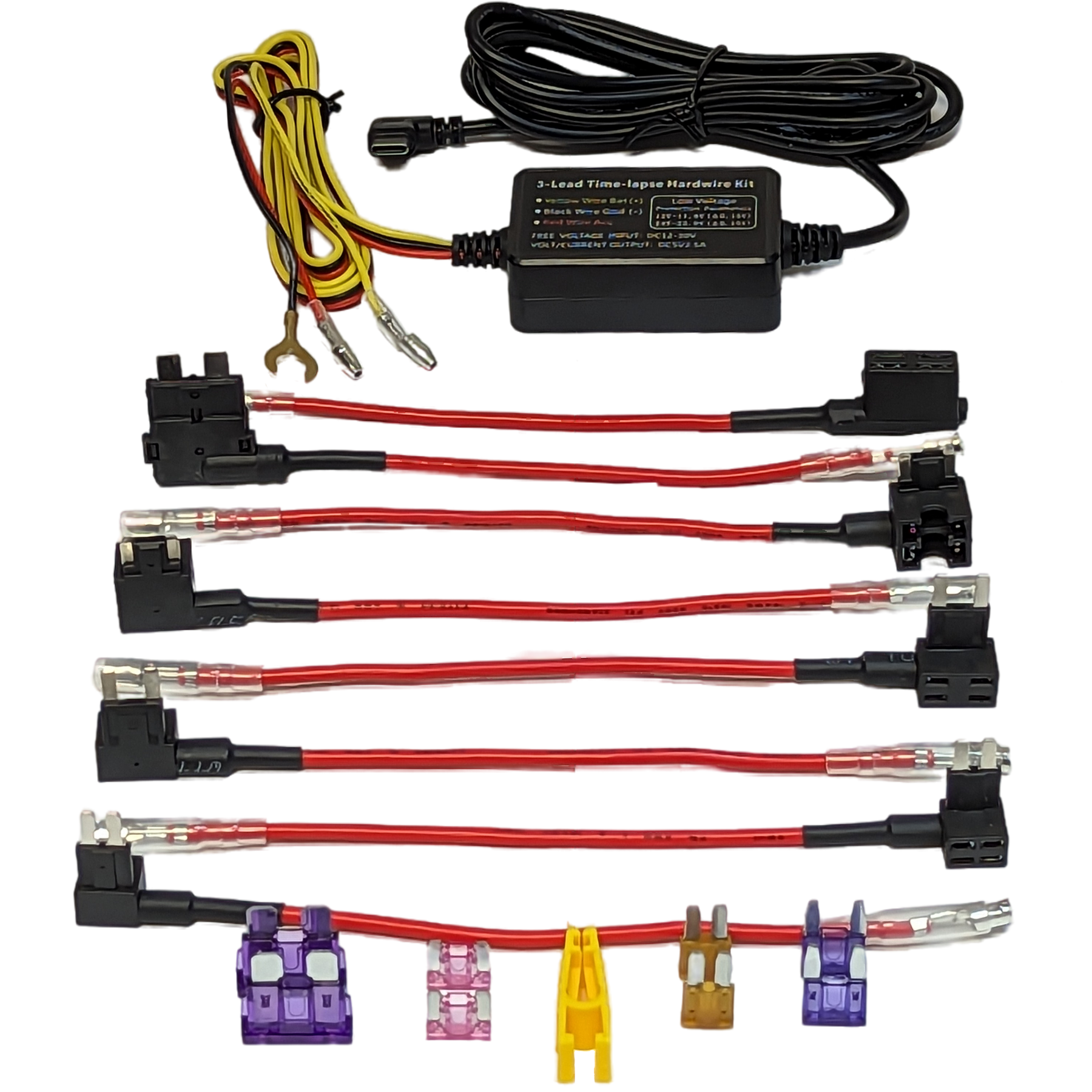

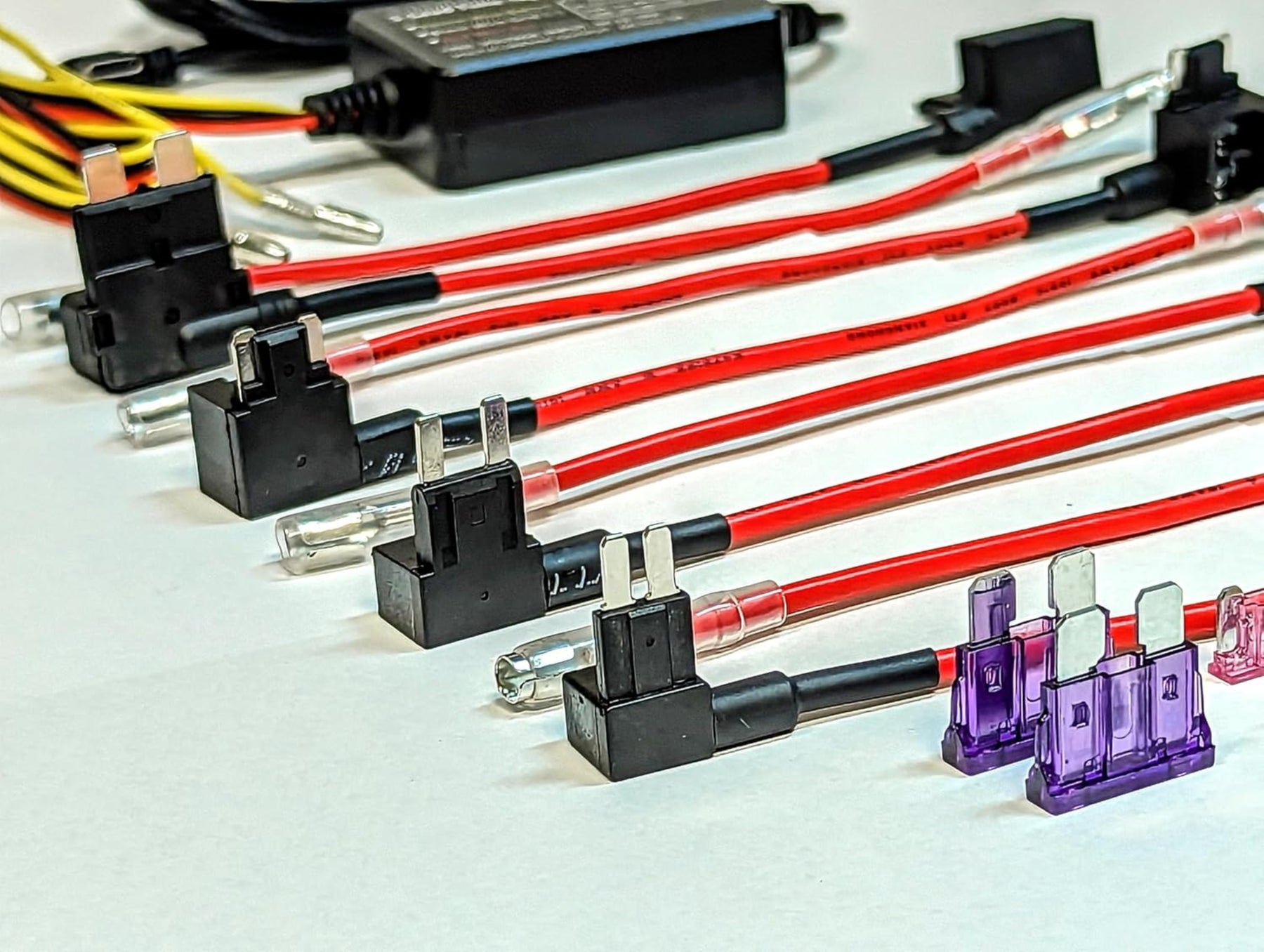

  - An Add-A-Circuit fuse tap (recommended for a clean, solder-free installation)

Step-by-Step Installation

Step 1: Locate Your Vehicle’s Fuse Box

Most vehicles have two or more fuse boxes. For this installation, you will need to access the interior fuse box, which is typically found in one of the following locations:

• Under the driver’s side dashboard
• Inside the glove box or center console
• Beneath the steering column

Consult your vehicle's owner manual to find the exact location and a diagram layout of the fuses.

Step 2: Choose Your Power Configuration

Decide how you want your SPY SPOT GPS tracker to receive power:

• Option A: 24/7 Constant Power (Recommended)
  - How it works: Your tracker charges continuously, even when the car is turned off.
  - Which fuse to look for: Choose a circuit that always remains live, such as the hazard lights, clock, or interior cabin lights.
• Option B: Ignition-Switched Power
  - How it works: Your tracker only draws power and charges its internal battery when the vehicle's engine is running.
  - Which fuse to look for: Choose an accessory circuit, such as the radio, cigarette lighter/12V outlet, or windshield wipers.

Step 3: Connect the Ground Wire (Black)

Locate a solid, unpainted metal bolt or screw attached directly to the metal frame of your vehicle near the fuse box (this is your ground point).

1. Loosen the bolt slightly.
2. Secure the bare Black wire loop or lead tightly underneath the bolt.
3. Retighten the bolt completely to ensure a secure metal-to-metal contact.

Step 4: Connect the Positive Power Wire (Red)

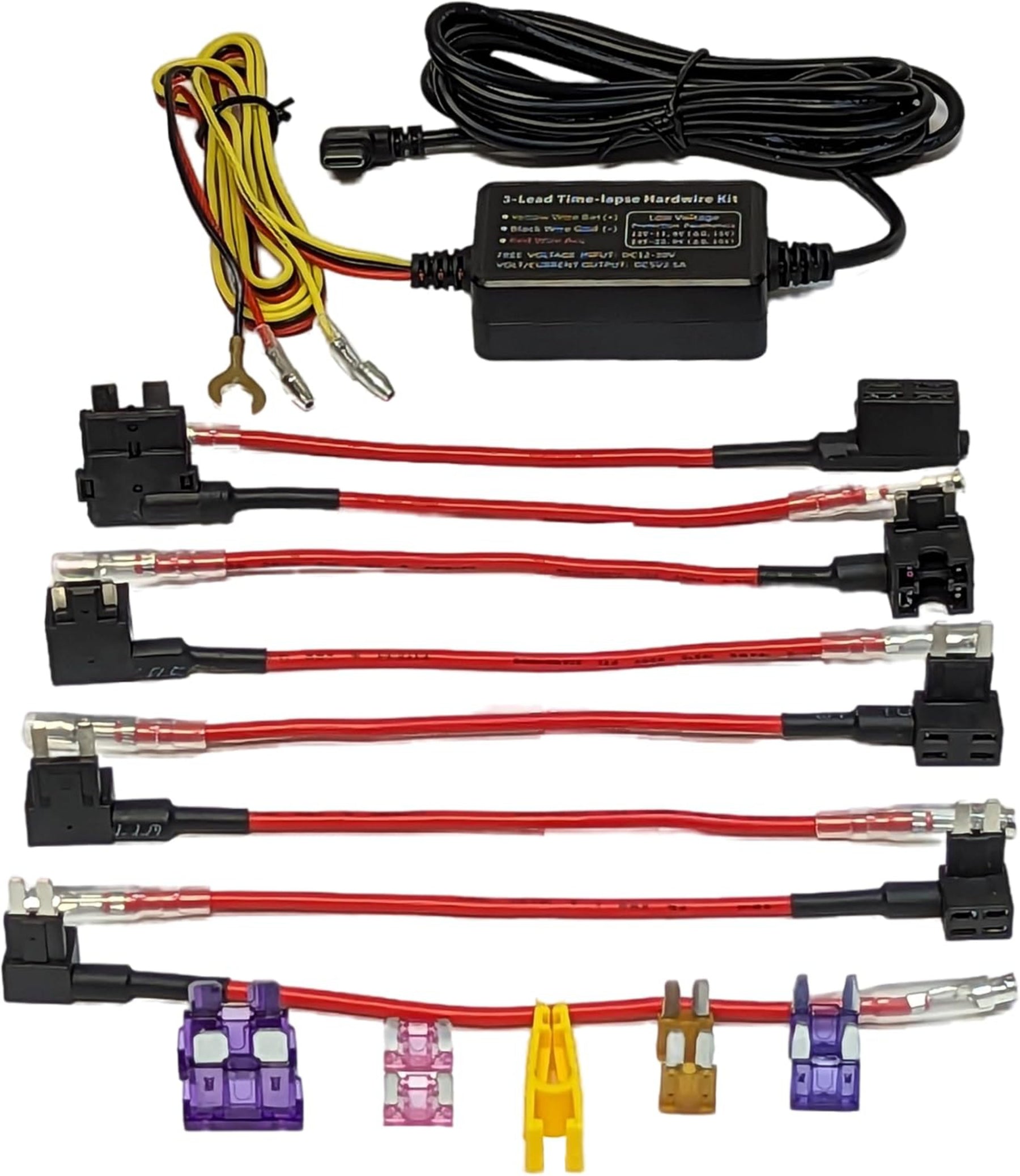

Using an Add-A-Circuit fuse tap is the safest and cleanest way to attach the positive wire:

1. Pull out the fuse from the circuit you chose in Step 2.
2. Insert that fuse into the bottom slot of your Add-A-Circuit tap.
3. Insert a new low-amperage fuse (such as 2A to 5A) into the top slot of the tap to protect your hardwire kit.
4. Connect the bare Red wire of the hardwire kit to the wire tail of the fuse tap.
5. Plug the fuse tap directly back into the empty fuse slot.

Step 5: Route the Cable & Connect the Tracker

1. Safely route the 78-inch cable from the fuse box up behind your dashboard panels toward your desired tracking location. Avoid any moving parts like pedals or steering columns.
2. Plug the Male USB-C connector securely into your SPY SPOT GL320MG Micro GPS Tracker.
3. Conceal the tracker in a discreet spot (such as under the dash or inside the glove box) ensuring the top side of the tracker faces upward toward the sky for the best satellite signal.

Testing the Setup

• If wired for Constant Power: The charging light on your GL320MG tracker should illuminate immediately upon plug-in.
• If wired for Ignition-Switched Power: Turn your car key to the "ACC" or "ON" position. The tracker's charging indicators should turn on only when the vehicle power is active.

Disclaimer: Electrical installations carry inherent risks. If you are uncomfortable working with your vehicle’s electrical wiring or fuse panels, we highly recommend consulting a professional car audio or automotive technician for installation assistance.

🛠️ Need Help? Find a Professional Installer

If you prefer not to handle the hardwiring yourself, we have you covered. Once you have purchased your hardwire car kit online, you can coordinate with an authorized professional to get it up and running safely.

Use our interactive locator map to find a certified technician near you:

👉Find an Authorized Spy Spot Installer Near You
